Casual Line

Digicore808i

A concentration of the high end car audio technology,
The digital processor amplifier with a built-in memory player.

FIR hybrid digital processor with a regulating ability of maximum 300dB/oct., 8ch digital direct amplifier, memory player corresponding to non-compressed linear PCM, the car automation function which achieved the best comfortableness, overwhelming sound quality and most advanced sound control performance which can foresee the future of HiFi car audio, condensing every comfortable use into a compact A4 size of mass 4kg, Degicore808i is a dream car audio component that could build the most high-qualified 8ch digital full multi-system just by connecting the speaker. The second generation of Degicore "i" model, has a new amplifier integrated circuit and improved control software adopted. As well as the drive ability to the speaker, we improved the transparency and the resolution of the sound. A rich input terminal with 2 systems of light digital, 2 systems of coaxial digital, and 1 system of RCA analog line, could also answer to a high-level (speaker) input with use of an accessory adapter, and also correspond flexibly to the add-on attachment using the genuine sound system which can't be removed. We propose the finest sound environment in both domestic and abroad luxury saloons and super sports cars and vintage cars.

Digital Processor / Amplifier

Digicore808i

Digital processor amplifier
Main controller, wireless remote control attached

(The main feature of Degicore808i)

•The all-in-one design which purified the signal process to the limit based on D.S.D.D.(Digital Source Direct Drive thought)
•The new digital direct amplifier circuit and control software which improves the speakers drive force and sound quality.
•-300dB/oct. crossover and F.S.E.Q. (frequency select equalizer), 4-way 8ch corresponding FIR hybrid digital processor including time aliment
•The 8ch digital direct amplifier which amplifies digital audio signals immediately while being digital
•Built-in memory audio player corresponding to the non-compression linear PCM, which brings ultimate reduction in transmission process. It would feel like using a CD changer.
•The main controller (wired) and the wireless remote control is a standard equipment, and could be used appropriately according to the style of installation or your taste.
•The system could be upgraded with various audio equipment; 2 systems of light digital input, 2 systems of coaxial digital input, 1 system of analog input
•6 systems of visual input, convenient for connecting on-screen output of an in-vehicle player, car navigation, and a rear view camera.
•Adapter for high-level input which could be connected directly to the genuine audio. (Pre-set)
•The sub-volume terminal with a connector substrate for addition, which can add a volume adjustment control, at the passenger seat or at the rear seat. (Pre-set)
•The expansion connector which achieves overall car automation connected with the vehicle information.

(The main specification of Degicore808i)

•Overall size/ mass: W297×H210×D58mm/4.0kg
•Media corresponding built-in memory audio player*: CF card (Other memory cards could be used with an adapter on the market.)
•The format corresponding to the built-in audio player**: WAV (44.1kHz, 16bit audio/monaural), MP3 (MPEG-1/Audio layer-3 in accordance with ISO/IEC11172-3, MPEG-2/Audio layer-3 in accordance with ISO/IEC13818-3 (LSF) )
•Sound input terminal: 2 systems of light digital (TOS link), 2 system of the coaxial digital (RCA), and 1 system of RCA analog line
•Visual input terminal: 5 systems of RCA composite (corresponds to each voice input), 1 system of RCA composite for rear view camera
Sound output terminal: speaker output 8ch
•Visual output terminal: 2 systems of RCA composite for ounce clean indication
•The digital direct amplifier part rated output :22W x 8 (4Ω, all ch drive)
•The maximum consumption current: 35.0A (all ch drive, with maximum output)
•idling consumption current: 1.5A
•Main attachment: Main controller (wired), wireless remote control, adapter for high-level input, adapter for linear level adjustment, connector substrate for sub-volume addition
*Media(CF memory card) is not attached
**It doesn't correspond to MPEG2.5. The output format is decided by the designation value of the sampling rate.

DigicoreSK1

Sonic design's "Standard" keeps evolving with the technical innovation of a car audio.

If you would compare the speaker unit to a player, the crossover network plays a role as the orchestra's conductor, putting each musical sound together to music. However, fairly estimating our speaker unit's performance "micro diameter, wide ranged and high power", which had no precedents, and no digital crossover network existed up until now which could perfectly draw out the reproduction ability. Developing such network was also a target from our foundation.
December 2004, with the most advanced digital audio technology and extraordinary amount of resources poured in, the ultimate digital audio processor "Sonic design SK-1 Synergy" was brought to the world. The full 8ch composition FIR digital processor; corresponding to the cut-off slope 300dB/oct. which a phase-roll theoretically doesn't occur when adjusting, and SK-1 Synergy; concentrates the creation technology represented by SK solid enclosure, which would wipe out the unnecessary radiation and mechanical vibration with the overwhelming stiffness and mass, massively bloomed the essential advantage of Sonic Design's micro diagram speaker unit and revealed the limits of car audio sound reproduction pushing them up to the next level. Of course, the high quality sound technology which was developed for SK-1 Synergy is fed back to various Sonic Design products such as Degicore808i.
The DegicoreSK1is the newest version based on SK-1 Synergy which incorporated new study results after 2006 and brushed up the control ability. As the most high-qualified 8ch analog linear output machine, you can choose whichever power amplifier you like from the market, and build the system freely respecting the originality of a listener and installer. DegicoreSK1 which has an excellent expansibility and scalability, keep evolving with the technical innovation of car audio, and is the benchmark necessary for our research and development. It is also Sonic Design's standard, and you could enjoy every bit of the super analog world which should be called the true charm of audio hobbies without any limitation.

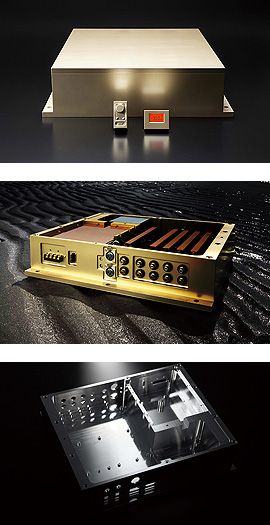

Universal Digital Processor

DigicoreSK1

Digital processor amplifier
Universal digital processor
Main controller, display unit attached
*This machine is build-to-order. Using numbers of Special and selected parts, and each produced completely handcrafted, we need some leading time from your order till delivery. Receipt of order could be suspended or sometimes end without notice. For more information, please ask the dealers handling DegicoreSK1 or us.

(The main feature of DegicoreSK1)

•SK solid enclosure which was cut out of a block of pure extra-super duralumin (Alcoa 7075)
•The supreme musical expressive power lined by the ultimate exchange precision, 8ch parallel drive digital/analog converter
•-300dB/oct. crossover and F.S.E.Q. (frequency select equalizer), 4-way 8ch corresponding FIR hybrid digital processor including time aliment
•The large-volume discrete composition power supply perfectly separating audio circuits and digital circuits
•The extra super duralumin block cut-out main controller regard installation as the most important essence; lengthwise location would equivalent to 1DIN , crosswise location would equivalent to half DIN.
•The extra super duralumin block cut-out display unit which concentrate the operational information of this machine such as input system and attenuation.
•The system could be upgraded with various audio equipment; 2 systems of light digital input, 2 systems of coaxial digital input, 1 system of analog input
•High-level input-only terminal adopting the XLR connector which could be connected directly to the genuine speaker.

(The main specification of DegicoreSK1)

•Overall size/ mass: 430×381×101mm/19.8kg (body), 25×50×27mm/0.08kg (controller), 45×35×13mm/0.06kg (display unit)
•Sound input terminal: 2 systems of light digital (TOS link), 2 system of the coaxial digital (RCA), 1 system of RCA analog line, and 1 system of XLR high level analog
•Sound output terminal: RCA analog linear 8ch
•Linear amplifier maximum output: 8V×8 (all ch drive)
•The overall high harmonic distorted rate: Less than 0.002 % (1kHz)
•Overall S/N: More than 120 dB (10Hz-20kHz)
•Consumption current: 3.3A
•Main attachment: Main controller, display unit
*This is an analog linear output only machine, so it’s impossible to drive a speaker directly. Also, this machine isn't audio player built-in. Please prepare power amplifier and audio players separately.

*This is an analog linear output only machine, so it’s impossible to drive a speaker directly. Also, this machine isn't audio player built-in. Please prepare power amplifier and audio players separately.
